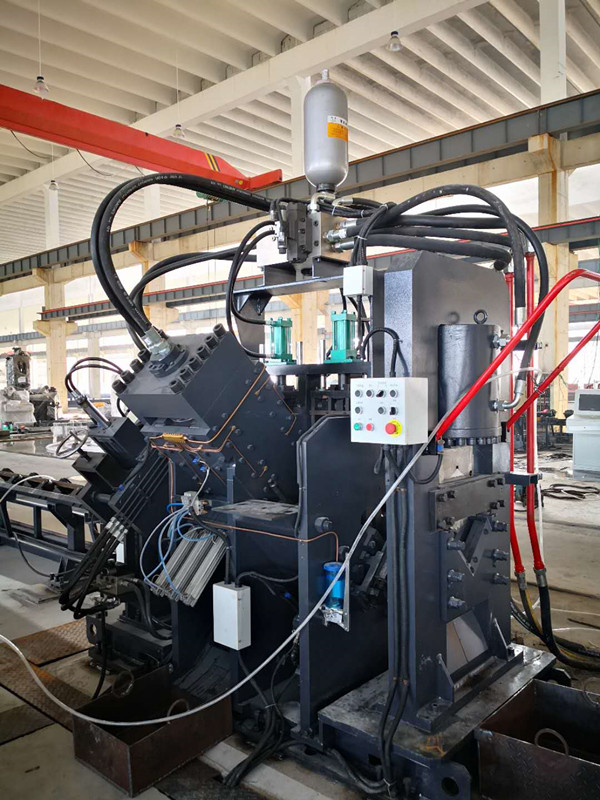

CNC Angle Punching Machine Line For Steel Tower Fabriaction Punching Force 1000kN

  • 1
  • 2

Brand Name : Auten

Model Number : JNC2020

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per year

Delivery Time : 30 days

Packaging Details : Wooden case

Functions : Punching, marking, and cutting angle bars

Angle size : 40х40х3~140х140х12mm

Max. diameter : 26mm

Max. punching thickness : 12mm

Name : CNC Angle Processing Machine

Feature : Stable

Cutting Force (kN) : 1800

Punching Force (kN) : 630

Contact Now

CNC Angle Punching Machine Line For Steel Tower Fabriaction Punching Force 1000kN

Application of this machine:
CNC angle attack machine is widely used in power transmission, steel tower, railway, bridge construction, used for marking and cutting angle of attack. Also known as CNC angle steel production line.
Features of CNC angle punching machine:
1. 3 CNC axis, used to adjust the hole distance and gauge lines on both sides, with high positioning accuracy;
2. The high precision of hole pitch positioning, the feed part with encoder is used for actual position feedback and error compensation, forming a closed loop control.

Specifications:

Model JNC1010 JNC1412 JNC2020
Angle size (mm) 40х40х3~
100х100х10		 40х40х3~
140х140х12		 50х50х4~
200х200х20

Max. Punching

(Dia. х Thi.) (mm)

 Φ26х10 Φ26х12 Φ26х20
Punching force (kN) 630 630/1000 1000/1200
Marking force (kN) 630 630/900/1200
Cutting force (kN) 1000 900/1800 1540/4300
Max. length of blank (m) 12 12 14
Max.length of finished (m) 10 12 14
Punches per side 2 2 or 3 3
Group of marking letters 4 4 4
Number of letters per group 12
Cutting mode Single Blade Double Blade or Single Blade
Feeding speed of angle(m/min) 80 80 60
Advanced software programs:
A) SUPERTIME independently writes software programs.
B) We can update the software program according to actual production needs to meet the special needs of customers.
C) The software program can read BOCAD and TEKLA lofting software. Now we have developed a program to connect with LANTEK.
D) The program can realize data exchange with the ERP system.
