High Speed CNC Heating Angle Bending Machine for Angle Bar Steel Tower Fabrication
Applicable industry:
Heat bending also call fire bending , after the workpiece heated to a definite temperature of the bending process. It is used to bend angle of angle steel for Transmission tower & Communication tower & Microwave tower etc.
Features:
1. When process angle size less than L100×L100×10, cold pressing can be used when the degree of bending is less than 5°.
2. Processing speed: cold pressing processing for 10s/time, heating processing for 120s/time (determined according to actual processing materials and materials), processing of workpiece when heating temperature is 800 degrees (ie red), (determined according to actual material and bending angle) .
3. When the workpiece is heated and processed, design the parameters, press the cycle to start or step on the foot switch, fully automatic heating forward, heating, heating to exit, press the workpiece, press the head up, take out the workpiece.
4. When heating and cold pressing, design the parameters and directly perform cold pressing. The pressing head does not need to return to the original point. The lower pressing mold raises the gap of 100mm, and the workpiece is taken out, and the working efficiency is high.
Parameter:
| No. | Model | GHQ250～700 |
| 1 | Oil Tank Pressure (kN) | 1600 |
| 2 | Processing Angle Range (mm) Heel up (outside double-sided bending) | L80*7～L250*32 |
| 3 | Outward double-sided bending degree for angles (°) | 30° |
| 4 | Processing Angle Range (mm) Compression (inner single side bending) | L80*7～L200*18 |
| 5 | Inner single side bending degree for angles (°) | 20° |
| 6 | Processing Angle Range (mm) Tension (outward single side bending) | L80*7～L200*18 |
| 7 | Outward single side bending degree for angles (°) | 16° |
| 8 | Bending Plate thickness (mm) | 2～16 |
| 9 | Bending Plate width (mm) | 700 |
| 10 | Bending degree for plates (°) | 90° |
| 11 | Angle opening & closing range (mm) | L80*7～L200*16 |
| 12 | Angle opening & closing degree (°) | 16° |
| 13 | Oil Tank Stroke (mm) | 800 |
| 14 | Motor Power (kW) | 15 |
| 15 | Heating power (kW) | 80*2 |
| 16 | NC Axis | 3 |
| 17 | Cooling water tank (m³) | 8 |
| 18 | Cooling water flow (m³/h) | 50 |
| 19 | Oil tank capacity (L) | 630 |
| 20 | Weight (T) | About10 |
| 21 | Overall size (mm) | 3500*4500*4100 |
Product Tags:
|
|

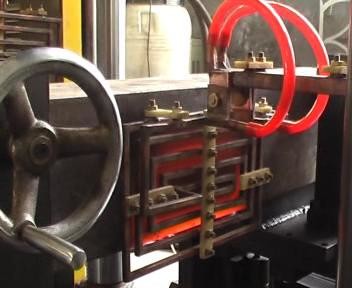

High Speed CNC Heating Angle Bending Machine for Angle Bar Steel Tower Fabrication Images
|
