CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry

Name: CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry
Brand: Auten
Price: 1 USD

CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry Manufactures

Brand Name : Auten

Model Number : BS1000/BS1250

Certification : ISO9000

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 100 sets/ year

Delivery Time : 60 days

Packaging Details : wooden case

H beam size : 1250x600mm

Saw blade lineal speed : 20~100 m/min

Rotation angle : 0°～ 45°

Function : Band sawing

Contact Now

CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry

Applicable industry:
Used for the sawing of H-shape steel, box beams, channel steel, angle steel and round steel of steel structure, bridge, three dimensional garages and petrol platform industries.

Product feature:
■Double column design equipped with strong lathe bed, with fine function of absorbing vibration during high speed sawing.
■Can rotate itself and no need to rotate for longer work piece when beveling for 0°~45°, can keep the continuity of production.
■Saw blade driving with greater motor power and good transmission. Used for the specialized processing of various section steel of steel structure industry.
■Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation and can extend life of saw blade.
■Small aperture, high precision, and greatly reduce material consumption.
■Laser alignment function and advanced and retreated structure slightly adjusted with hand, convenient for cutting accurately.
■Automatic coolant compatible with blade could make blade lubricant and reduce the temperature of blade.
■PLC control, sawing linear velocity can be adjusted by transducer motor and sawing feeding speed also can be adjusted by hydraulic stepless adjustment. This greatly promotes production efficiency.
■Key machine, hydraulic pressure and electric components are chosen famous products domestic and abroad.

Product Basic Parameter

Model		BS750	BS1000	BS1250
Sawing force (mm)	round steel	Φ550	φ660	φ660
	square steel	480x480	550x550	630x630
	H beam	750x450	1000x500	1250x600
Saw blade size (mm)		T:1.3;W:41 ;L:6650	T:1.6;W:54 ;L:7600	T:1.6;W:54 ;L:8300
Saw blade lineal speed (m/min)		20~80 (adjustable)
Motor power (kW)		5.5	11	11
Feeding speed		stepless feeding
Rotation angle		0°～ 45°
Main clamping hydraulic motor (ml/r)		160
Front clamping hydraulic motor (ml/r)		160
Clamping type		Hydraulic clamping
Overall dimension(LxWxH)		About 3.5x2.5x2.6	About 3.8x2.6x2.6	About 4.2x2.6x2.7
Machine weight (Kg)		About 5500	About 6000	About 6800

CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry

Product Tags:

Cutting CNC Band Sawing Machine

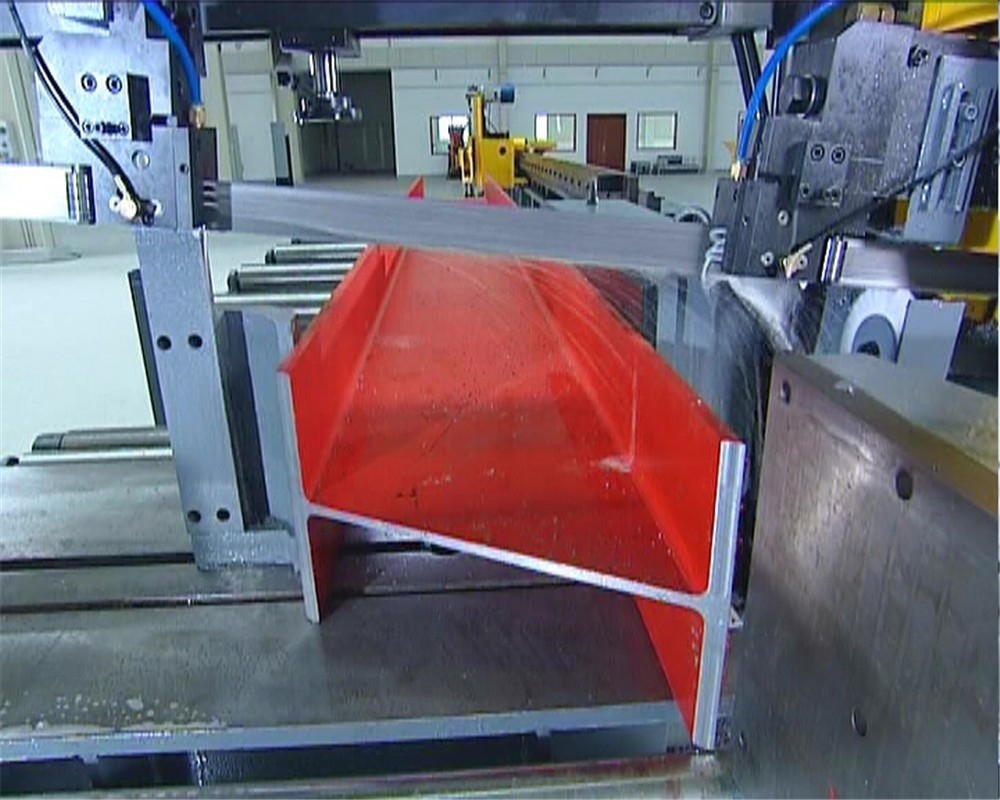

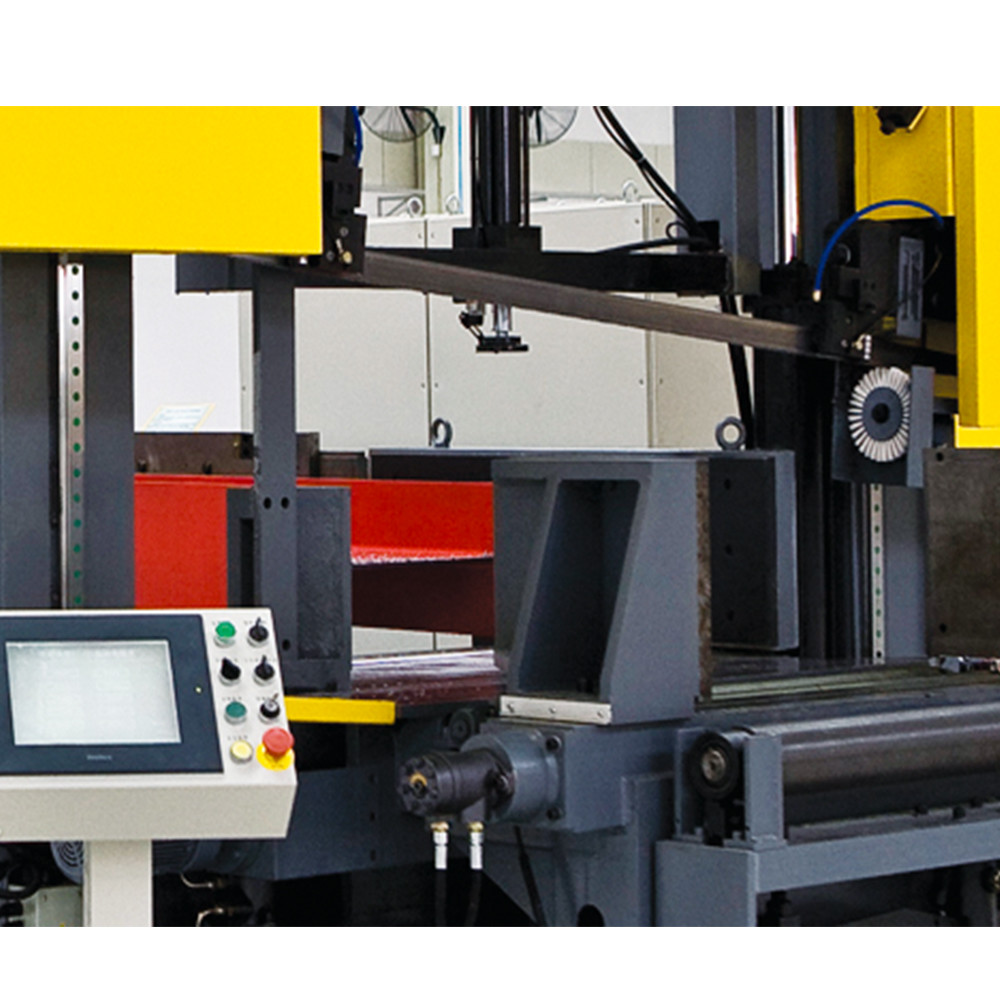

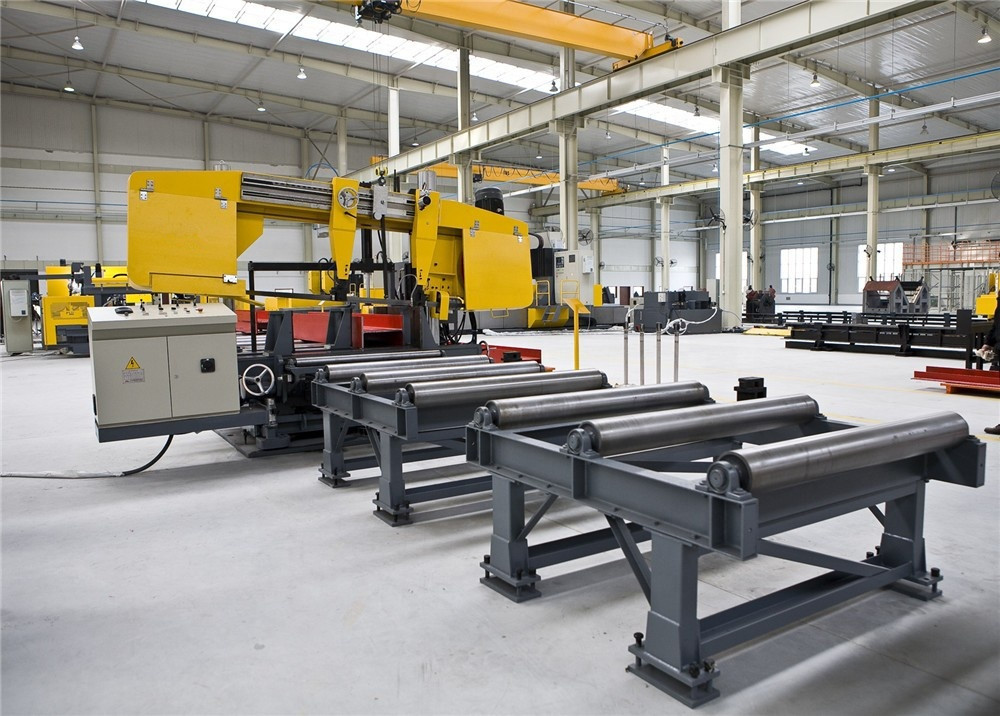

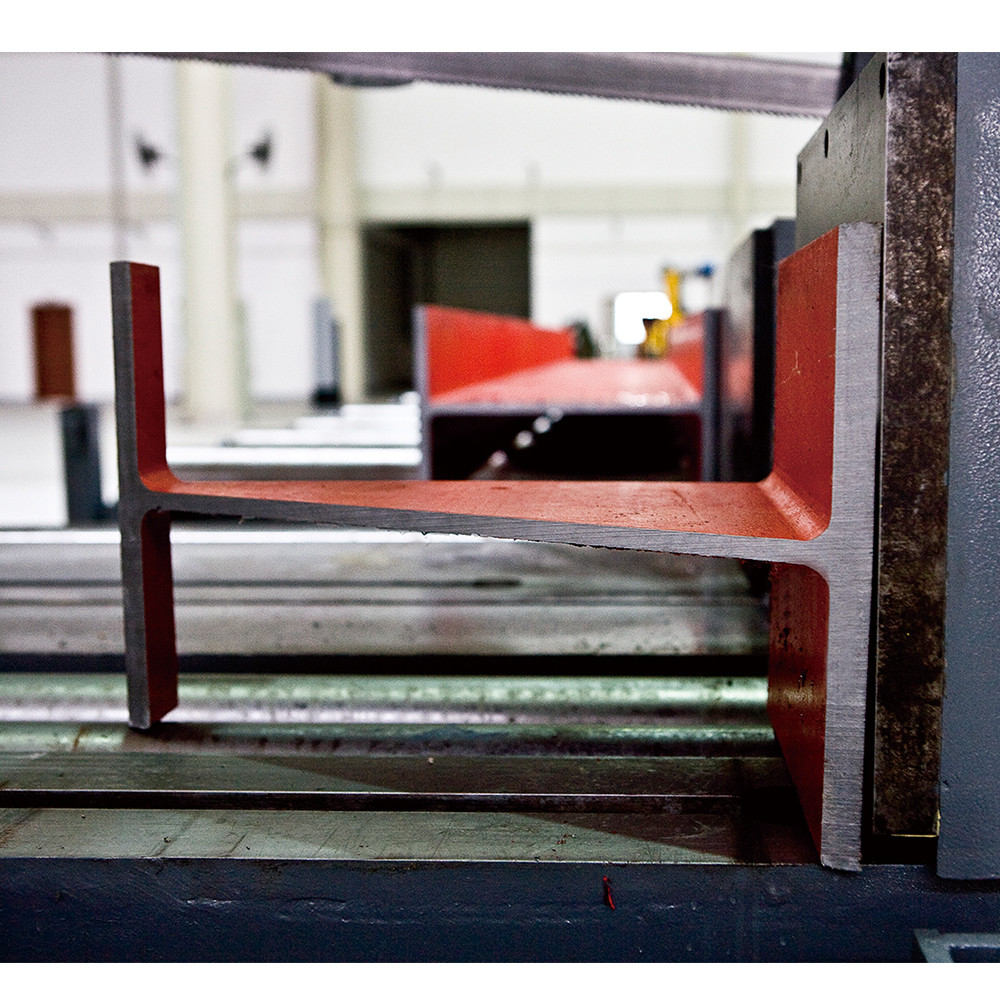

CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry Images
