High Speed CNC Angle Punching, Marking and Shearing Machine Line for Angle Tower
Applicable Industry:
This machine is used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2.Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software.
3. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

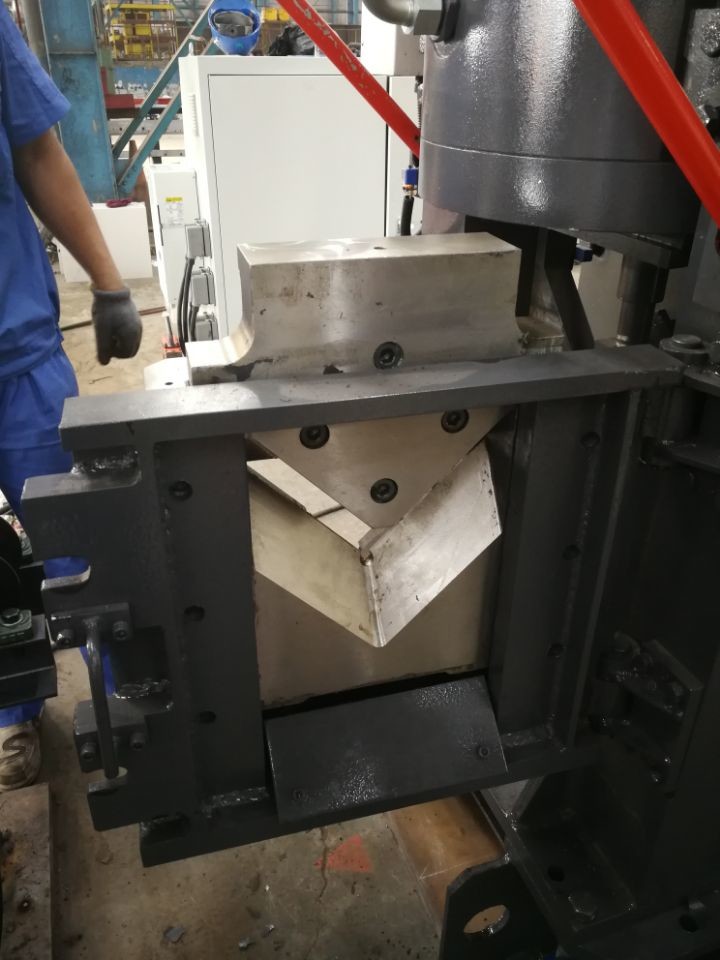

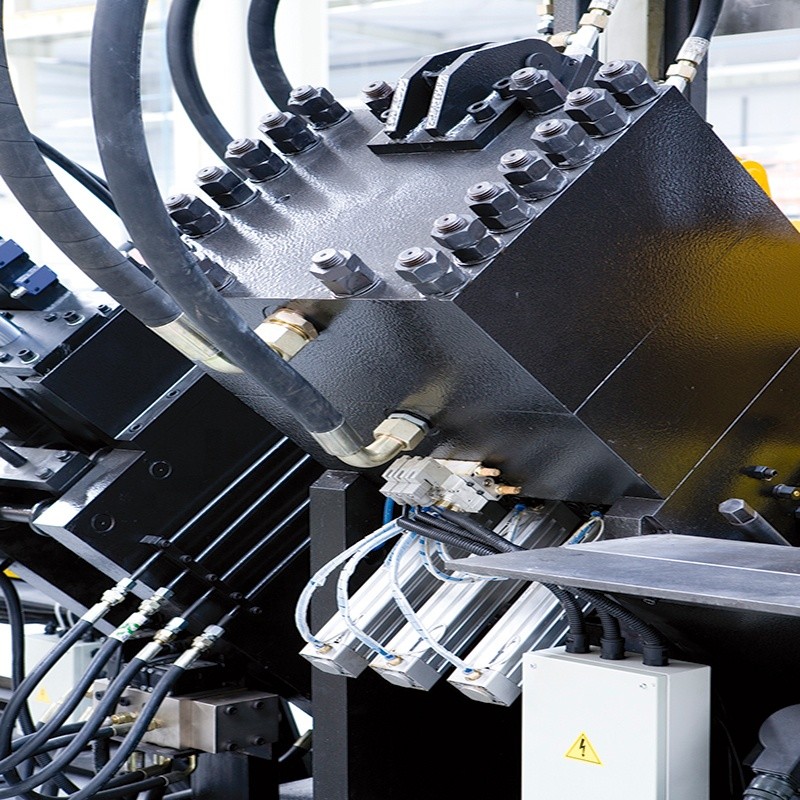

4. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

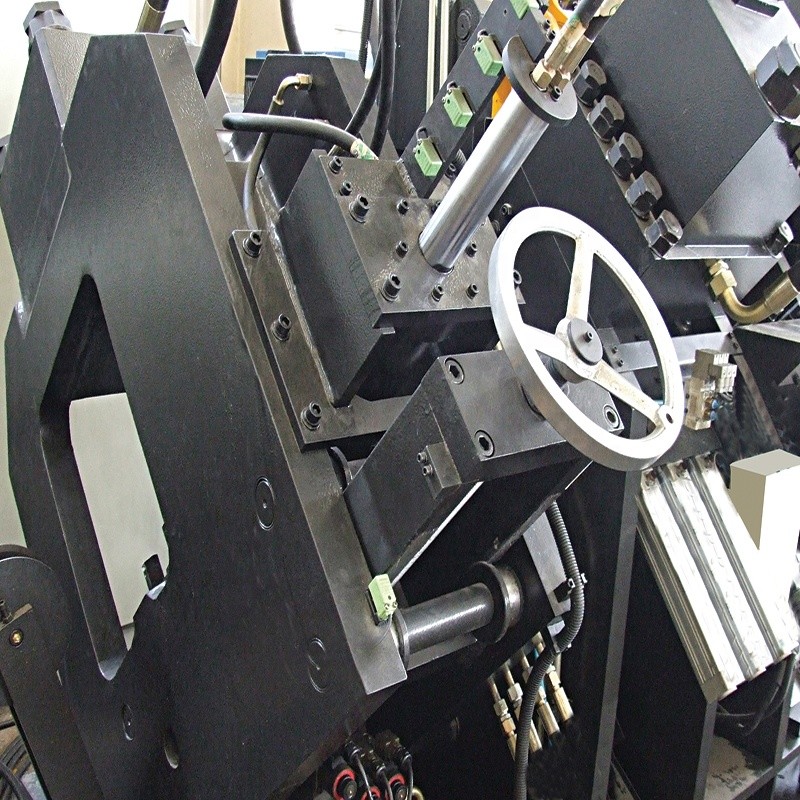

5. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking back mark can be set at will.
Specifications:
| Model | JNC1010 | JNC1412 | JNC2020 |
| Angle size (mm) | 40х40х3~
100х100х10 | 40х40х3~
140х140х12 | 50х50х4~
200х200х20 |
| Max. Punching (Dia. х Thi.) (mm) | Φ26х10 | Φ26х12 | Φ26х20 |
| Punching force (kN) | 630 | 630/1000 | 1000/1200 |
| Marking force (kN) | 630 | 630/900/1200 |
| Cutting force (kN) | 1000 | 900/1800 | 1540/4300 |
| Max. length of blank (m) | 12 | 12 | 14 |
| Max.length of finished (m) | 10 | 12 | 14 |
| Punches per side | 2 | 2 or 3 | 3 |
| Group of marking letters | 4 | 4 | 4 |
| Number of letters per group | 12 |
| Character size(mm) | 14x10x19 |
| CNC axes | 3 |
| Cutting mode | Single Blade | Double Blade or Single Blade |
| Feeding speed of angle(m/min) | 80 | 80 | 60 |
| Processing precision | Accordance with GB2694 |
| Programming mode | Input by keyboard,USB interface |
| Overall dimension (m) | About 28x6.5x2.2 | About 29x6.5x2.2 | About 32x7x2.35 |
